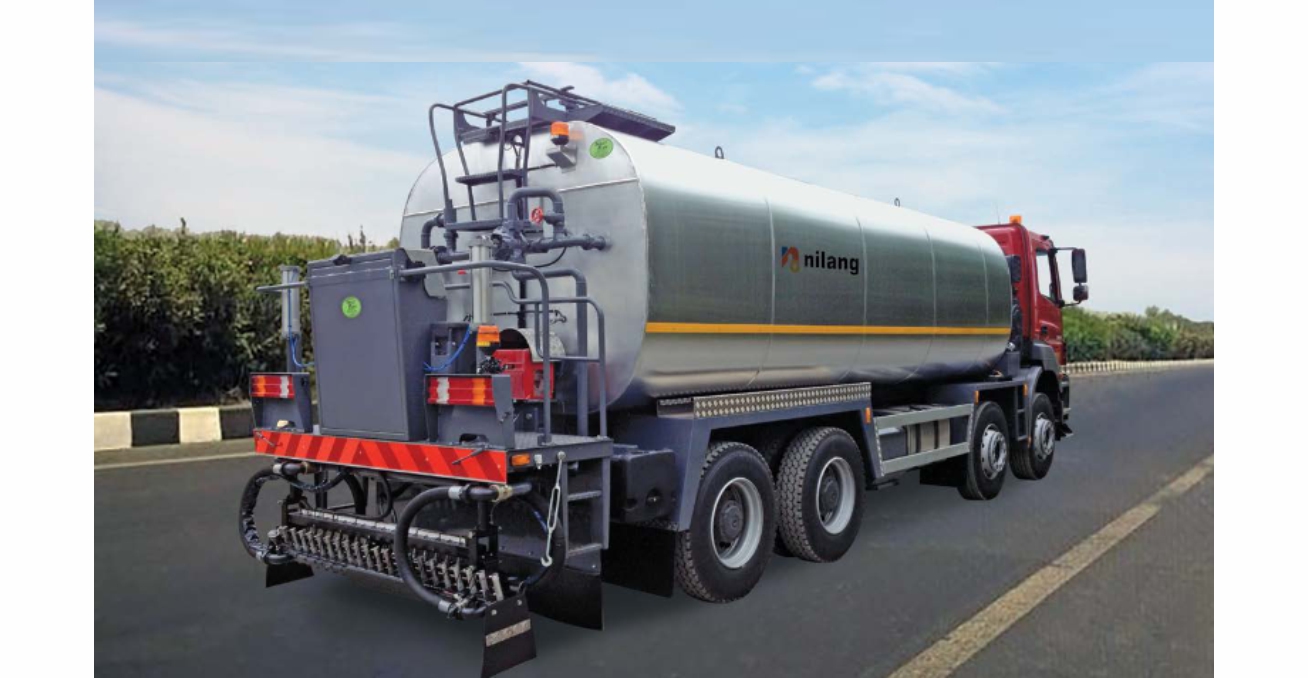

Bitumen Pressure Distributer / Bitumen Sprayer

Bitumen sprayers, gives unbroken and specify quantity of bitumen or emulsion. These units can be supplied as a module to suit mounting on customer's truck chassis or can be supplied completely along with standard truck chassis.

The unit has a built in heating system with a high capacity imported burner to heat the bitumen to the required temperature. Various fuel options as well as burner options are offered on specific requests. The Insulated Storage tank clad with Industrial gauge steel sheets built strictly to Industrial codes for storing, handling and transportation of Bitumen. The cladding is optionally available in a wide range of options ranging from Galvanized, Aluminium or Stainless steel sheets.

A unique pressure cleaning system is a standard, which cleans the system after use and avoids blockages at the end of days work.

Each unit comes loaded with a speed detection & driver control system, air compressor, diesel engine, High capacity positive displacement internal gear type asphalt pump, remote control station, hand spraying attachment.

The horizontally folding spray bar is supplied with a basic width of 2.4 Meter extendable up to 4.2 Meter. The Fully circulating spray bar can deliver bitumen at pressures ranging from 0- 6 kg/sq m. All units are supplied with an inbuilt bitumen charging / loading system. The bar is pneumatically operated and easily adjustable.

Complete range of Truck Mounted Bitumen Sprayer models with rated Capacities of 4000 to 10000 Litres.

Model	NBD - 4000	NBD- 6000	NDB - 8000	NBD - 10000
Length - L	2400 mm	3000 mm	4000 mm	4400 mm
Width - W	2108 mm	2108 mm	2108 mm	2208 mm
Height - H	1708 mm	1708 mm	1708 mm	1758 mm
Capacity	4000 ltr	6000 ltr	8000 ltr	10000 ltr
Manhole	600 mm	600 mm	600 mm - 2 Nos.	600 mm - 2 Nos.
Insulation	50 mm	50 mm	50 mm	50 mm
Shape	Elliptical	Elliptical	Elliptical	Elliptical
Burner
Type	Compressed Air Type	Compressed Air Type	Compressed Air Type	Compressed Air Type
Burner Fuel Tank	50 ltr	50 ltr	50 ltr	50 ltr
Engine Fuel Tank	20 ltr	20 ltr	20 ltr	20 ltr
Service Tank	20 ltr	20 ltr	20 ltr	20 ltr
Recommended Chassis
Wheel Base - WB	148"	176"	182"	198"
Clear Chassis Length - CL	5000 mm	5600 mm	6600 mm	7000 mm
Min. Height of Chassis - CH	1150 mm	1150 mm	1150 mm	1150 mm
Bitumen Pump	Internal Gear Pump	Internal Gear Pump	Internal Gear Pump	Internal Gear Pump
Driving Unit
Engine Model	Kirloskar HA 294	Kirloskar HA 294	Kirloskar HA 294	Kirloskar HA 294
Engine Output	18.5 kW @ 2000 rpm, Air Cooled	18.5 kW @ 2000 rpm, Air Cooled	18.5 kW @ 2000 rpm, Air Cooled	18.5 kW @ 2000 rpm, Air Cooled
Air Compressor	Twin Cylindered, 2.25 kW	Twin Cylindered, 2.25 kW	Twin Cylindered, 2.25 kW	Twin Cylindered, 2.25 kW
